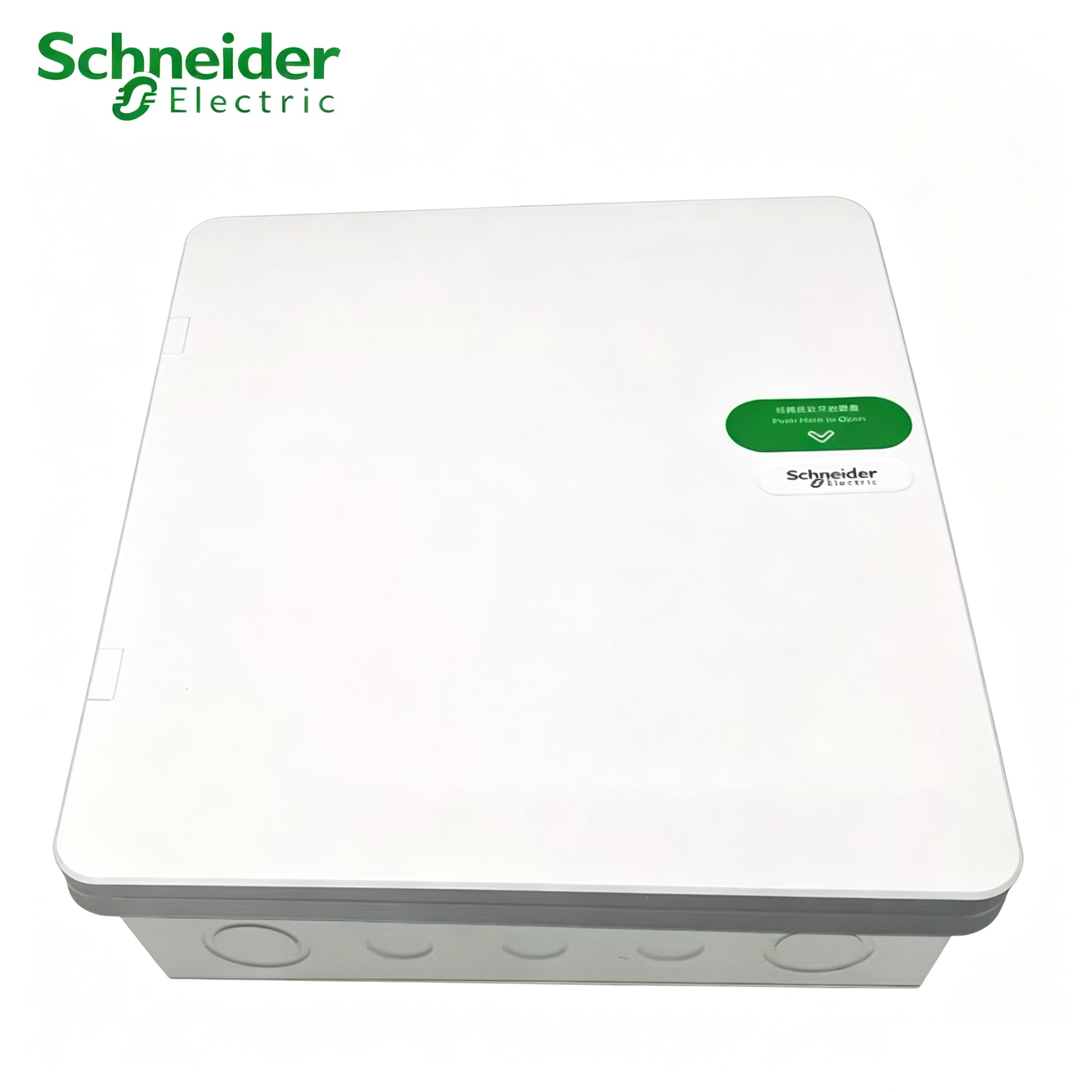

Schneider Authorized Low Voltage Distribution Panel
Prisma E Series Schneider Low-Voltage Distribution Cabinet
Authorized Schneider Low-Voltage Switchgear System
Product Overview
The Prisma E series low-voltage distribution cabinet is produced by Guangdong Shifu Electric under Schneider authorization. Designed for the Chinese market, it is suitable for low-voltage distribution systems up to 630A. Based on modular components, it is perfectly integrated with Schneider elements to form a high-quality, cost-effective standardized power distribution solution.
Application Scenarios:
- Factories
- Stadiums
- Data Centers
- Schools
- Hospitals
Product Types
Common applications of Prisma E switch cabinets include:
- Variable Frequency Starter Cabinet
- PLC Control Cabinet
- Intelligent Lighting Distribution Box
- Water Pump Power Distribution Box
- Fan Power Distribution Box
- Air Conditioning Power Distribution Box
- Emergency Lighting Distribution Box
- General Lighting Distribution Box
Technical Parameters
| Parameter | Unit | Specification |
|---|---|---|
| Rated Working Voltage | V | 400 |
| Rated Insulation Voltage | V | 690 |
| Rated Working Frequency | Hz | 50 |
| Rated Working Current | A | 10 ~ 400 |
| Rated Short-Time Withstand Current | kA | 10 |
| Protection Class | - | IP54 |
Normal Operating Conditions
- Ambient temperature: -5℃ ~ +40℃ (24h avg ≤ +35℃)
- Relative humidity: ≤ 50% at +40℃, up to 90% at +20℃
- Indoor use only, altitude ≤ 2000m
- Installation tilt ≤ 5°
- No severe vibration, impact, or corrosive gases
