Low Voltage Distribution Panel

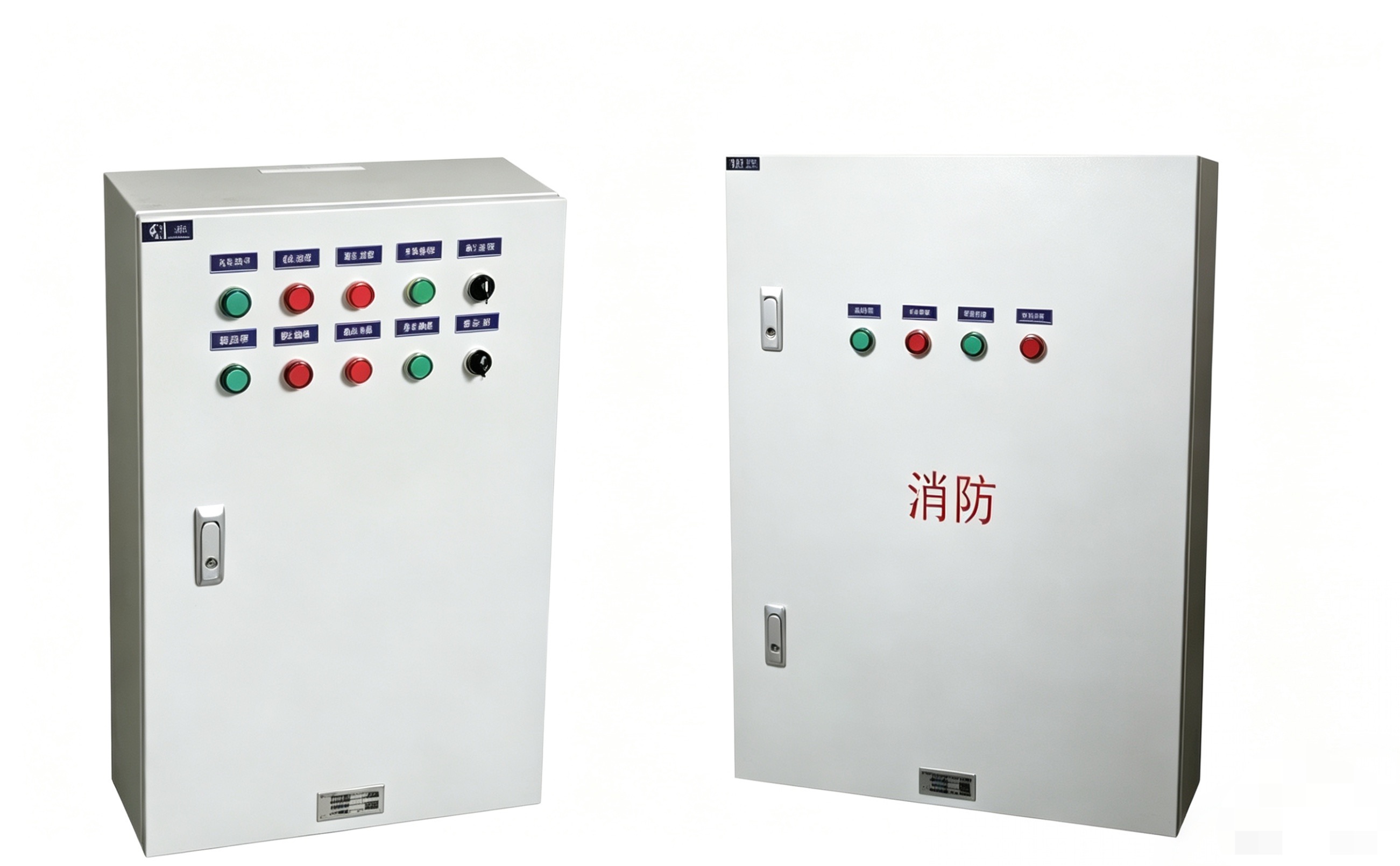

XM Low-Voltage Distribution Box
AC 50Hz, Rated Voltage ≤ 380V
Product Overview
XM type low-voltage distribution box is suitable for industrial and mining enterprises, residential communities and high-rise buildings. It is used for power distribution, lighting and metering in low-voltage distribution systems with AC 50Hz and rated working voltage not exceeding 380V.
Performance Features
-
Box-type structure with IP65 protection rating
-
Can be made into lighting boxes, metering boxes, socket boxes or multi-function combination boxes according to different primary circuit schemes
-
Cabinet material options: stainless steel plate or ordinary cold-rolled steel plate with plastic spraying treatment
Model Explanation
XM: Low-Voltage Distribution Box
-
M: Lighting function
-
D: Metering function
-
K: Control function
-
Hybrid: Multi-function combination
-
L: No power function
-
Primary circuit scheme number
Product Dimensions
| Height (mm) | Width (mm) | Depth (mm) |
|---|---|---|
| 300 | 250 / 300 | 160 / 200 |
| 400 | 300 / 500 / 600 | 160 / 200 |
| 500 | 400 | 160 / 200 |
| 600 | 400 / 500 | 160 / 200 |
| 700 | 600 | 200 |
| 800 | 600 | 180 / 220 |
| 900 | 700 | 220 |
| 1000 | 800 | 250 |
Technical Parameters
| Parameter | Unit | Value |
|---|---|---|
| Rated Voltage | V | 380 |
| Rated Current | A | 10 ~ 250 |
| Operating Frequency | Hz | 50 |
| Protection Class | - | IP65 |
Normal Operating Conditions
-
Ambient air temperature: ≤ +40°C, ≥ -5°C, average temperature in 24h ≤ +35°C
-
Clean air; relative humidity ≤ 50% at +40°C, allowing higher humidity at lower temperatures (e.g., 90% at +20°C)
-
Altitude ≤ 2000m
-
Installation tilt ≤ 5 degrees
-
No severe vibration, impact or corrosive environments that could damage electrical components
