Low Voltage Distribution Box
Multimedia Information Box
Home Wiring & Smart Network Distribution Unit

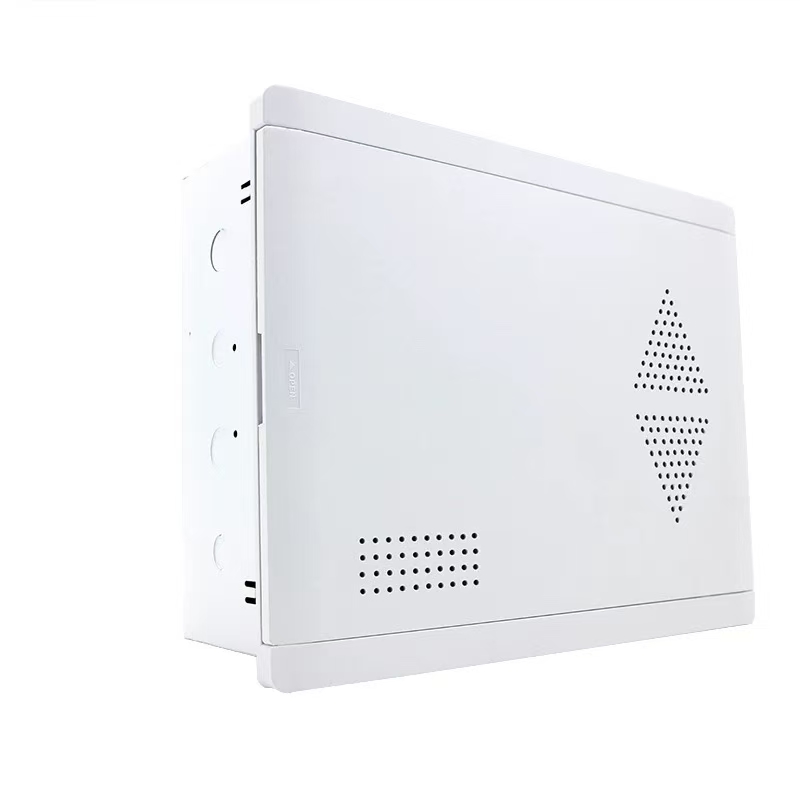

Product Overview
The multimedia information box is also known as home wiring box, residential information distribution box, or smart enclosure. It is designed for centralized management of home communication and weak-current systems.
Main Applications
- Smart home and intelligent building projects
- Weak-current engineering and system integration
- Smart community and building automation systems
- Home decoration and smart home renovation
- Home LAN and home appliance intelligent control

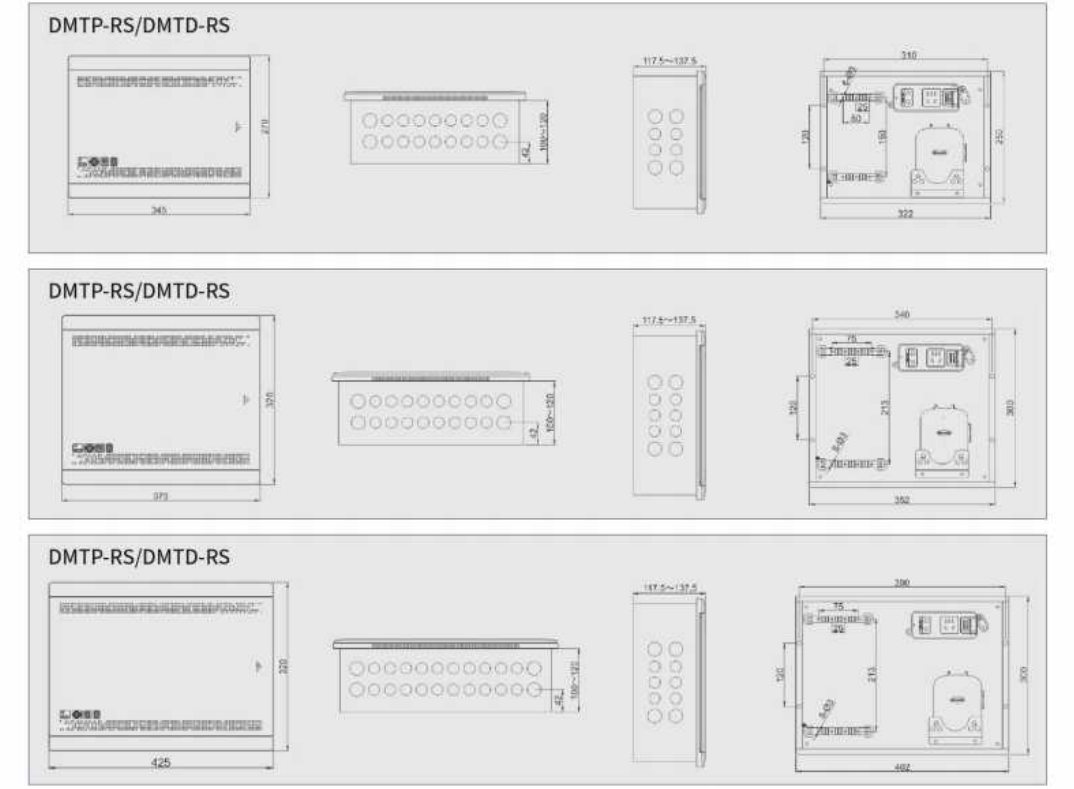

Outline Dimensions
Technical Parameters
| Model | Cover Size (mm) | Base Enclosure Size (mm) | Mounting Height | Material |
|---|---|---|---|---|
| SFDMTP/D-RS | 345 × 270 × 17.5 | 322 × 250 × 100 | 3U | HIPS / Cold-rolled Steel |
| SFDMTP/D-RM | 375 × 320 × 17.5 | 352 × 300 × 100 | 4U | HIPS / Cold-rolled Steel |
| SFDMTP/D-R | 425 × 320 × 17.5 | 402 × 300 × 100 | 4U | HIPS / Cold-rolled Steel |
Note: Enclosure depth can be 100mm or 120mm; plate thickness can be 0.8mm or 1.0mm.
